The complete Dark Knight Insane LED kit includes everything you need: 2 Dark Knight Insane driving lights, mounting bracket, cable kit and top braces. Powerful driving light, dual position light and warning light in one lamp. Get ready to go from 0 to 100.

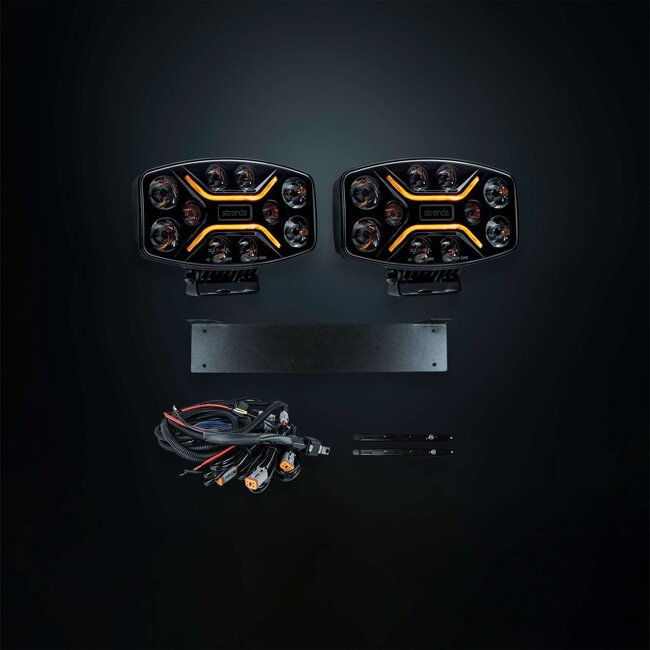

Kit contents
- 2x Dark Knight Insane LED driving lights
- Mounting bracket
- Cable kit
- Top braces
Specifications
- Voltage: 10-36V DC
- Theoretical power: 240W
- Actual consumption: 200W
- Functions: driving beam, white and amber position light and warning light
- White position light consumption: 3W
- Amber position light consumption: 3W
- Driving beam consumption: 196W
- Warning light consumption: 12W
- 5 warning patterns
- Theoretical output: 24,000 lumens
- Actual output: 21,000 lumens
- 1 lux range: 620 metres
- Colour temperature: 5700K
- Beam pattern: optimised beam
- Connection: cable
- Cable length: 2500 mm
- Black housing
- Clear lens
- LED colour: white and amber
- Stainless-steel bracket
- Aluminium housing
- Polycarbonate lens
- Dimensions: 247 x 70.7 x 141 mm
- Height including bracket: 170.5 mm
- Weight: 5.4 kg
- IP68/IP69K
- Operating temperature: -40 to +60 °C
- E-approved
- ECE approvals: R7, R10.06, R65 and R112
