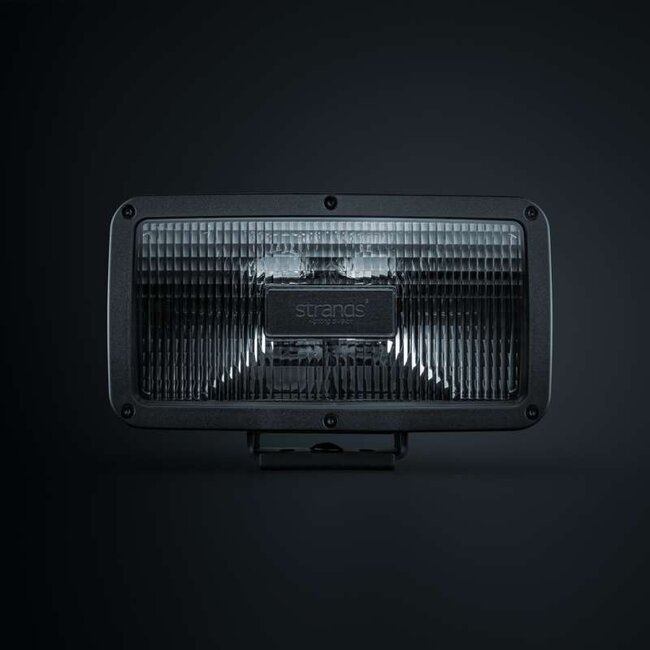

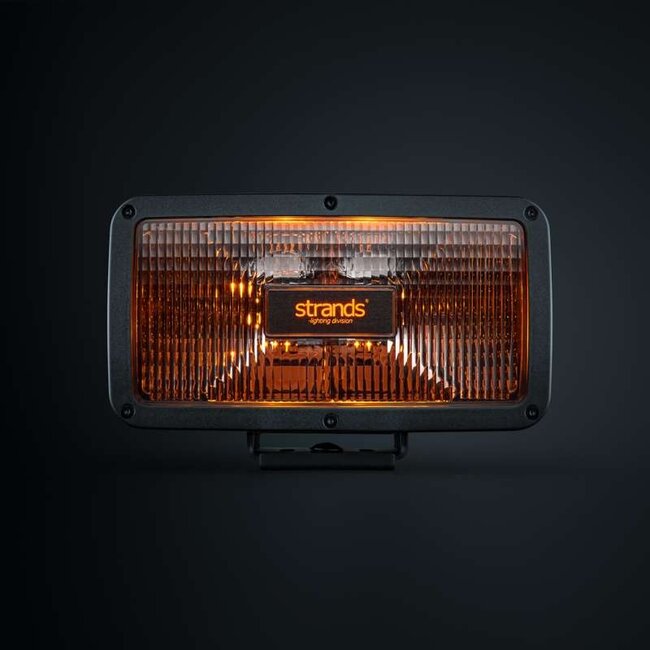

IZE LED OG spotlight square white/orange position light
Artikelnummer: STR-901012Modern power in an old-school style. This versatile, beautiful, and customizable driving light has everything you need. Read more.
- Everything for the fattest trucks
- Old-fashioned service!
- Personal expert advice
Product description
Strands IZE LED OG spotlight square - The modern old-school spotlight
This versatile, beautiful, and customizable driving light has everything you need. The IZE LED OG spotlight has a powerful, optimized beam with 9400 true lumens and a range of over 410 meters in Xperience mode. This gives a balanced view of the road ahead and to the sides.
Features
The E-mode is E-approved R148/149 with reference number 20, perfect for European roads and inclement weather. Warm white (3500 K) and amber position lights create a distinctive and original look. When activated, they produce a diffused glow through the textured lens.

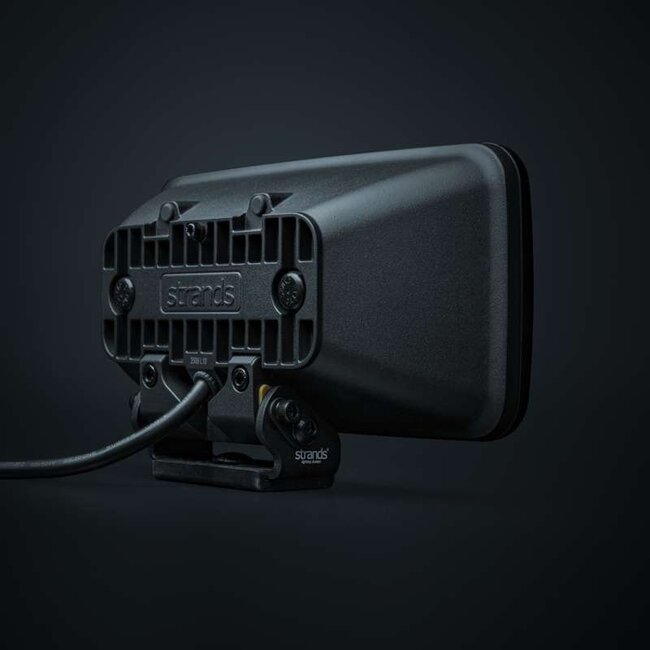

Installation is easy with the 2.5m cable, and everything you need is included: bracket, nuts, bolts, washers, and silicone pad. It can be installed hanging or standing. It has an IP68/69K rating and is compatible with 10-36V.
Specifications
| Feature | Value |
|---|---|
| Unit | PCs |
| Voltage | 10–36V DC |
| Theoretical ability | 150W |
| Consumption | 141.0W |
| Features | High beam, warm white and amber position light |
| Consumption per function | Xperience mode: 141W / E-mode: 52W / Warm white position light: 0.65W / Amber position light: 0.65W |
| Theoretical lumens | 12,000 lm |
| Effective lumens | Xperience mode: 9400 lm / E-mode: 4600 lm |
| 1 lux @ | Xperience mode: 412 m / E-mode: 320 m |
| Color temperature | 4500K |
| Light image | Optimized beam |
| Beam angle | 25.6° |
| Connection | Cable |
| Cable length | 2500mm |
| Casing color | Black |
| Color lens | Bright |
| Color LEDs | Warm white, white, amber |
| Bracket material | Stainless steel |
| Housing/chassis material | Aluminum |
| Lens material | Polycarbonate |
| Length | 246mm |
| Depth | 90mm |
| Height | 133mm |
| Height incl. bracket | 155mm |
| Weight | 1.98kg |
| IP class | IP68/69K |
| Working temperature | -40 – +60°C |
| E-approved | Yes |
| According to regulations | ECE R148, R149 |
| Reference number | 20 |
| EMC | ECE R10 |
| Additional information | Removable frame |
